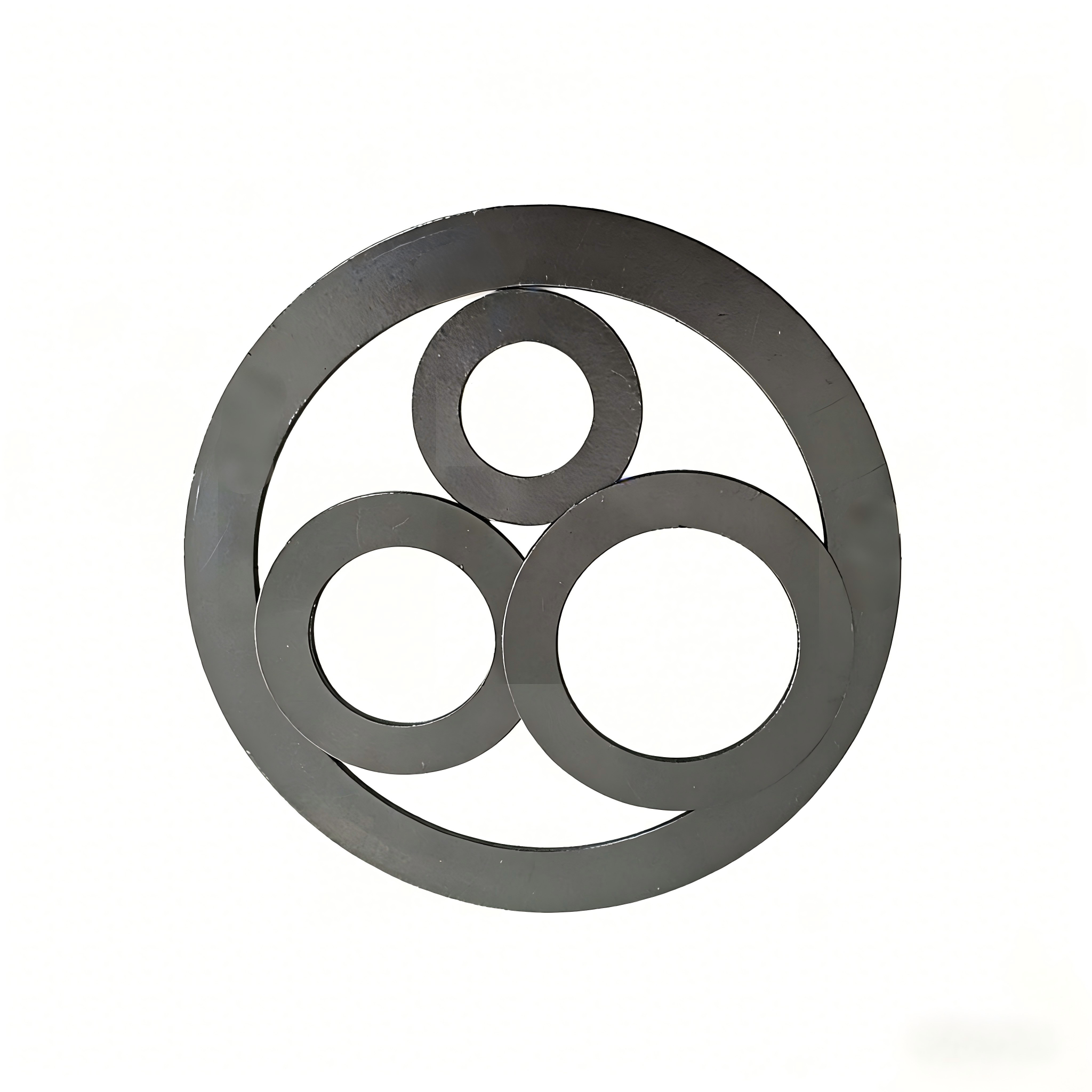

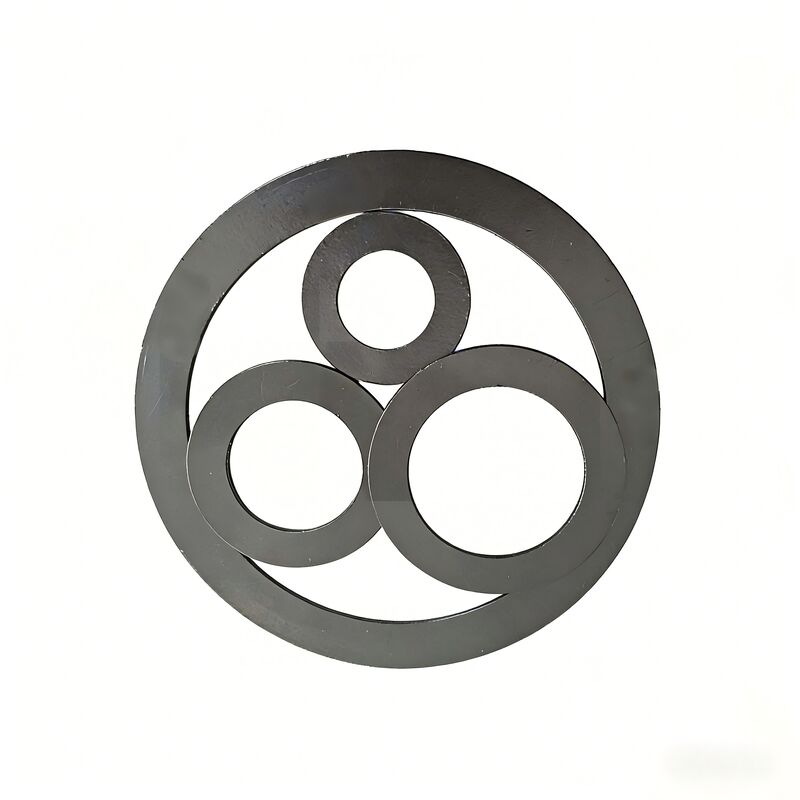

Specialized Graphite Sealing Gasket of Custom Thickness for High-Vacuum Deep-Cooling Systems in Petrochemical Refineries & Heavy Industrial Plants

Informação Básica

Lugar de origem:	China
Marca:	CLINGSEAL
Certificação:	ISO,SGS
Número do modelo:	CSG80

Quantidade de ordem mínima:	500kg
Preço:	2.2USD PER KG
Detalhes da embalagem:	Pálete/caso de madeira
Tempo de entrega:	20 dias
Termos de pagamento:	T/T, Western Union, Moneygram
Habilidade da fonte:	500 toneladas por mês

Melhor preço contacto

Informação detalhada

Nota:	classe industrial	Tipo:	Folha flexível
aplicação na indústria:	Petróleo e Gás, Química, Energia	Conteúdo c (%):	99,9%
Tratamento de superfície:	Finalização lisa/texturizada	Material:	Grafite flexível
Personalização:	Dimensões/Formas sob medida	Marcação CE:	CE - Certificado
Conformidade com RoHS:	O chumbo - isento/RoHS - Conforme	Resistência à Flexão:	Mpa 40
Acabamento de superfície:	Suave ou texturizado	Desempenho de vedação:	Fuga - Apertada em Altas Pressões
Composição Química:	Aço inoxidável	Dureza:	Dureza Shore
Resistência da fadiga:	Resistência ao estresse repetido	Padrão ou fora do padrão:	Padrão
Padrão:	ASTM, AISI, JIS, EN, GB	Grossura:	1mm a 10mm
Resistência à pressão:	Até 40 MPa

Descrição de produto

Specialized Graphite Sealing Gasket of Custom Thickness

For High-Vacuum Deep-Cooling Systems in Petrochemical Refineries & Heavy Industrial Plants

Products Description

Cling-Seal custom-thickness graphite gaskets are engineered specifically for high-vacuum, deep-cooling, and high-pressure operating environments in petrochemical refineries, chemical plants, and heavy industrial facilities. Built from high-purity expanded graphite with precision lamination and customizable forming, this series delivers reliable, long-term sealing performance under extreme temperature fluctuations, corrosive media, and ultra-low outgassing requirements.

Manufacturing Process

Produced from high-purity natural graphite flakes, our material undergoes chemical intercalation followed by rapid thermal expansion at 800–1000°C, creating worm-like expanded graphite with a bulk density of approximately 3 kg/m³. Without binders or chemical additives, the exfoliated graphite is compacted into rolls or sheets to achieve stable performance and carbon purity above 99%. This structure ensures excellent flexibility, thermal stability, and vacuum compatibility for critical industrial sealing systems.

Product Range

We provide a full suite of flexible graphite products for custom gasket fabrication, including:

Expanded graphite sheets
Graphite foil
Graphite tape
Graphite strips
Graphite paper

Standard Specifications

Flexible formats to support diverse processing, die-cutting, and assembly requirements.

Parameter	Coil Type	Sheet Type
Width	1000mm / 1500mm	1000mm / 1500mm
Length	30m / 50m / 80m	—
Thickness	0.15–1.0mm	1.0–5.0mm
Density	0.8–1.25 g/cm³	0.8–1.25 g/cm³

Note: Custom dimensions, thicknesses, and composite structures are available for OEM and project-based requirements.

Core Performance Indicators

Stable baseline properties for high-vacuum, deep-cooling, and petrochemical applications.

Item	Standard Value
Carbon Concentration	99%
Sulfur Concentration	＜1000 ppm
Chlorine Concentration	＜45 ppm
Tensile Strength	4.5 MPa
Compressibility	＞40%
Recovery	＞10%
Operating Temperature	-200°C ~ 600°C
Working Pressure	Up to 20 MPa
Thickness Tolerance	-0.04mm ~ +0.04mm
Dimension Tolerance	Custom per drawing
Density Tolerance	-0.06 ~ +0.06 g/cm³

Grade Classification (JB/T 53392-1999)

Three quality grades to match different industrial standards, equipment criticality, and project specifications.

Mechanical Data	Qualified Product	Top Grade	Superior Grade
Density Tolerance ＜0.4 g/cm³ ≥0.4 g/cm³	±0.10 ±0.07	±0.05	±0.05
Tensile Strength (MPa)	≥3.2	≥4.5	≥5.0
Compression Ratio (%)	35–55	35–55	35–55
Rebound Rate (%)	≥9	≥11	≥12
Stress Relaxation Rate (%)	≤10	≤10	≤10
Ash Content (%)	≤6.0	≤3.0	≤1.0
Heat Loss 450°C / 600°C	≤1.0 / ≤20	≤0.5 / ≤15	≤0.5 / ≤15
Sulfur Content (ppm)	≤1500	≤1000	≤600
Chloride Content (ppm)	≤100	≤50	≤20

Key Performance Benefits

Extreme Thermal & Vacuum Stability

Stable performance from deep-cooling cryogenic temperatures up to high-temperature service; low outgassing ideal for high-vacuum systems.
Superior Chemical Resistance

Resists acids, alkalis, hydrocarbons, and corrosive media commonly found in petrochemical and refining environments.
Strong Mechanical Reliability

High compression recovery and low stress relaxation ensure leak-free performance under pressure cycling and long-term service.
Custom Composite Design

Can be laminated with stainless steel or copper alloys for reinforced structural gaskets suitable for heavy-duty flanges and valves.

Typical Applications

Dynamic shaft seals and packing rings for pumps, valves, and compressors
Custom die-cut flange gaskets for pipelines, reactors, and pressure vessels
High-vacuum chamber seals and thermal barriers in deep-cooling systems
Heavy industrial seals for refineries, processing plants, and energy equipment

Cling-Seal Supply & Service Terms

Target Customers: Mainly overseas corporate buyers, factory procurement, engineering firms, and OEM industrial clients.
Shipping Origin: All orders shipped exclusively from China.
Individual Buyers: Accepted only if the buyer agrees to cover full international shipping costs for single-piece dropshipping. Orders cannot be processed without confirmed freight arrangements.
